Printed spare parts

Several parts of the G1 are themselves 3D printed. If one breaks, reprint it rather than wait for a shipment.

Click any part to rotate it in 3D and check it against the one in your hand before you print.

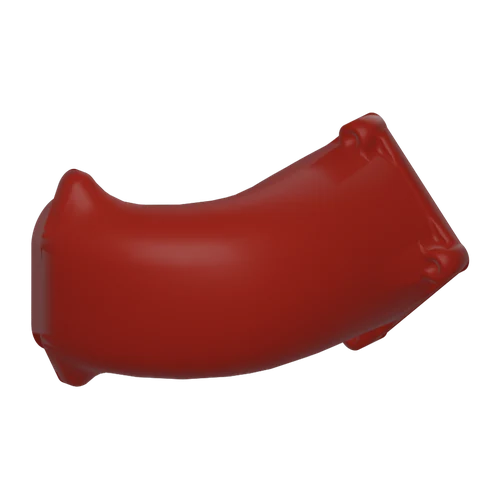

E08 96.4 × 110.5 × 81.7 mm STL STEP

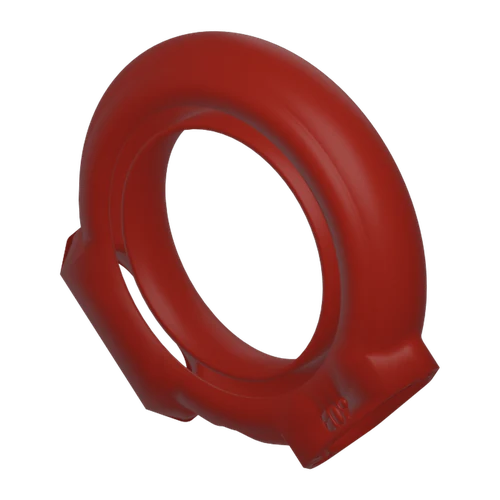

E09 166.2 × 30 × 153.8 mm STL STEP
E20 45.5 × 148 × 30 mm STL STEP
E21 — Probe arm Carries the probe switch. Mounts on a factory-calibrated metal arm — do not remove that one. 25 × 94.2 × 9 mm STL STEP

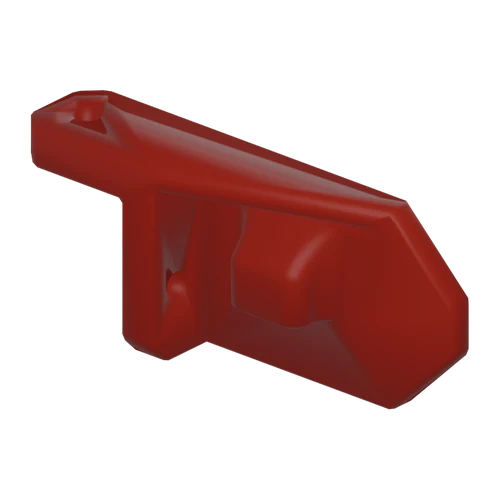

S04 110.2 × 25 × 48 mm STL STEP
S09 35 × 69.5 × 17.4 mm STL STEP

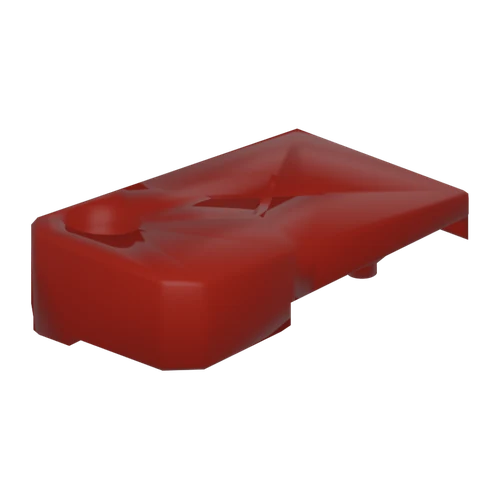

S18 35 × 69.5 × 16.4 mm STL STEP

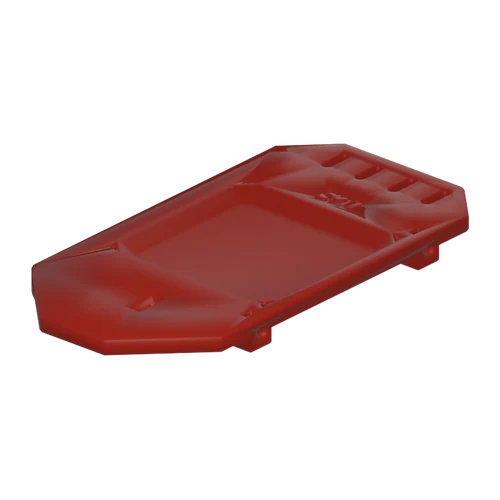

S20 105.2 × 211 × 64.4 mm STL STEP
S21 98.2 × 35.7 × 87 mm STL STEP
S23 35 × 69.5 × 16.4 mm STL STEP
S37 23.8 × 6 × 38 mm STL STEP
S38 28.8 × 6 × 48 mm STL STEP

Loading…

Drag to rotate · scroll to zoom · right-drag to pan

Two formats

Section titled “Two formats”

STL is the one you want. Drop it straight into Ginger Slicer and print.

STEP is the CAD model. Take it if you need to modify the part or measure it properly — it carries real geometry rather than a triangle mesh.

Before you reprint

Section titled “Before you reprint”
  • Check what actually failed. A part that breaks a second time is usually reporting a load or an alignment problem, not a weak print. The Z power-chain support in particular breaks when the gantry is rested on the ground without care — see Transporting the G1
  • Do not remove factory-calibrated metal parts. The probe arm E21 mounts to a metal arm calibrated at the factory. Replace the printed arm only — see Bed leveling system
  • Print orientation matters on the thin brackets: a part loaded across its layer lines will break there again
